IMPORTANT: The kit is compatible with the R1200 GS models from 2004 to 2012. And ‘possible to mount the kit on the Adventure model only by replacing the original plastic container with the original model R1200 GS.

Kit 120 G/S GR86

Cod. 1224_04_07WR_MB (WHITE/RED
– MATT BLACK)

Cod. 1224_08_12WR_MB (WHITE/RED
– MATT BLACK)

The KIT R120 G/S marks a return to the origins of the G/S while maintaining the comfort and drivability of your bike. The parts of the kit to replace weigh 6.4 kg less than the original. That is why the R 120 G/S is more manageable of the standard model, both in the city, both in the mix. After about 4 hours of editing in KIT R120 G/S have revolutionized the look of your bike making it unique, without changing anything of the original parts. The kit is compatible with all models R1200 GS 2004 to 2012. At any time you can restore your bike in original configuration. Of course, in addition to KIT R120 G/S base, you will have the ability to implement R120 accessories. In SPECIAL PARTS there are a series of accessories in style R120 G/S! The R120 G/S R can be equipped with the original ADV aluminum suitcases with the original metal frame, or by buying our frames suitcases cod.1220 you can mount the classic Vario original plastic (see the configurator). Equipped with pneumatic TKC or Karoo, will not even off-road obstacles, because the precious original parts are safe in your garage. Personalise it with the configurator and judge for yourself. The R120 G/S becomes according to your tastes fantastic replica of the 80 GS or an elegant scrambler.

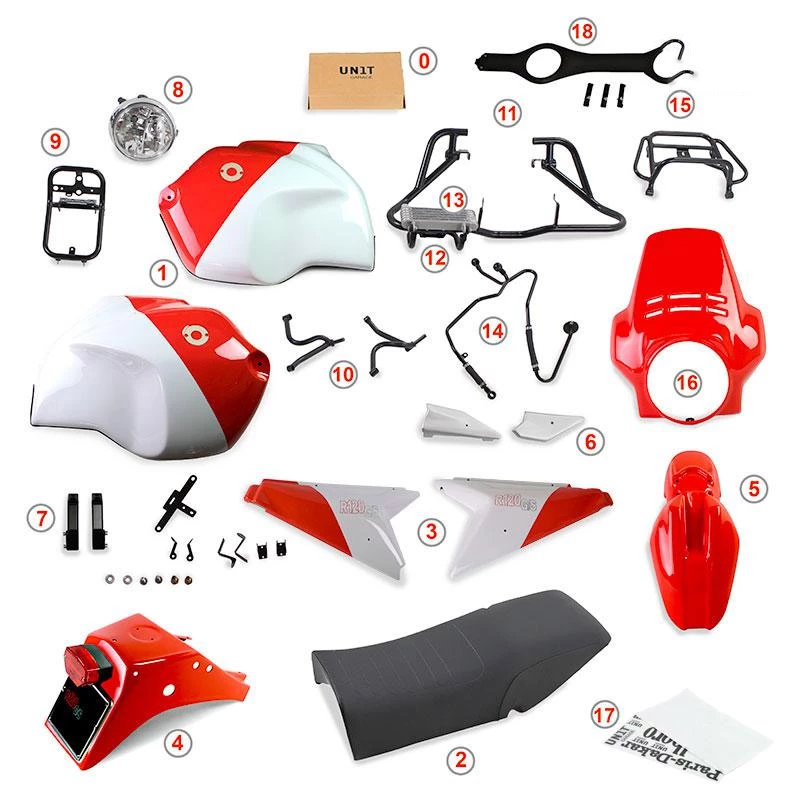

The basic kit includes:

0 Box with video instructions + screws and brackets

1 Tank Cover
2 Black Seat

3 Side panels
4 Rear fender
5 Front fender
6 Carter side

7 Riser handlebar

8 Headlight

9 Subframe headlight

10 Supports the fuel tank

11 Bar crash bars and skid

12 Support oil cooler

13 Oil Cooler

14 Tubes Oil Kit

15 Rack

16 Cupolino Fenouil

17 Kit Adesivi

18 Fascia serbatoio

1. Tank cover

Cod. 1201WR (WHITE/RED)

The kit is proposed to cover in two colors, choose the color by clicking on the picture in the configurator. Compatible with versions R1200 GS from 2004 to 2012 (indicate the year of your bike in the configurator). Pair tank covers in special resin and MAT with carbon fiber reinforcements, blue or white finish ALPINEWHITE and RED, graphics and transparent protection. Give the bike a great vintage look reminiscent of the mythical version of PD. Lightweight, fits very fast, comes painted with original colors, full of holes, screws, grommets, bushings and mounting bracket back turned to the front fixing. The side right side can be quickly removed to service the air filter. The rear bracket mounting is provided with a slot for engagement tank bag. On the sides of the tank there is a logo of the original R1200 GS that you can remove from your bike or buy from the sales of spare parts Journal. N.B.: 5 m above the 3 clips for coupling the cover 2 is the original of your bike, where are you screw the supplied button measure M5 x 12 mm (do not use pointed screws M5 original because it can compromise the integrity of the tank).

2. Seat

Cod. 1221B (BLACK)

Seat made of synthetic leather printed radio frequency in the areas of driver’s seat, hand-stitching on the sides with cotton thread. These seats are made and designed for long journeys. Complete with frame that allows the mounting of the original attacks. It keeps the lock and then the same keys of the bike.

3. Side panels

Cod. 1203WR (WHITE/RED)

The kits are offered in two color side panels, choose the color by clicking on the picture in the configurator. Pair of lightweight side panels, complete with stickers R120 G / S, ALPINEWHITE and RED with a transparent finish. They come with attachments, grommets and screws, can be mounted without any modifications to the bike. To avoid damaging the painting of the frame is provided with a transparent plastic adhesive. Are planned to house the looms ADV bags and our support for the original plastic bags Vario.

4. Rear Fender

Cod. 1205REF (RED, with holes for suitcases)

Rear fender is offered in two colors, choose the color in the configurator. Lightweight rear fender RED with a transparent finish. It mounts very easily on the original attacks. And comes complete with lamp and tail light wiring compatible with the original plug, so do not require any intervention on the electrical system. Comes with grommets for cable bolts and screws. The original attacs Vario plastic can not be mounted on KIT R120 G / S, the plastic bags Vario can be mounted only buying our frame Code 1220. The rear fender is provided for original logo R1200 GS (Code 51147721222), which can be purchased from the dealership BMW. N.B.: Are available cover caps frames suitcases (CODE 122509_06) in SPECIAL PARTS.

5. Front fender

Cod. 1209RE (RED)

The front fender is offered in three colors, choose the color in the configurator. Capturing the lines of the GS 80’s tip, finish RED, you can mount up and fixed frame in the special attacks of the headlight Code 1216, or staring down the original location. RED finish can be assembled only staring down the original location. NB: models can also be mounted on the R1200 GS and R1200 GS ADV instead of the original giving the bike a very aggressive look.

6. Side cover

Cod. 1226

Lightweight, painted white aluminum with a matte finish. They can mount on original attacks and come complete with inserts and screws.

7. Riser handlebar

Cod. 1225

Special handlebar risers we designed and manufactured to the CNC machined from solid high-grade aluminum alloy, anodized aluminum finish. Easy to mount on original accommodation, make it possible to mount the headlight frame of Code 1216 KIT R120G/S. With these risers the position of the handlebar and the upper part of the risers remain the original ones.

8. Headlight

Cod. 1206

Headlights, lamps h11 mounts (supplied in kit). The optical unit is the model R1200 R, then high-performance driving at night. The accommodation is light instead of our production. It easily mounts on the frame Cod 1216. Can be adjusted and is provided with wiring with male plug compatible with the female plug of the original plant.

9. Subframe headlight PRO

Cod. 1216

Made of steel with high resistance powder coatings. It easily mounts on riser Code 1225 and allows the housing of the headlight, fender top, arrows and optional screens. To mount the panel with tachometer and tachograph must be removed and inserted into the holes in the 3 rubber pads on the original frame.

10. Supports the fuel tank

Cod. 1214 04/07

Cod. 1214 08/12

These sturdy supports allow you to delete the original frame of the front light + + radiator mounting the fuel tank. They mount attacks in the same frame of deleted and are ready to accommodate the rubber of your original R1200 GS. They are made of steel and finished with high resistance to dust.

11. Bar crash bars and skid

Cod. 1211

Made of steel with high resistance powder coatings. It allows the installation of the radiator side through the holes. Easy to install, it comes complete with spacers bushings and screws. Most maintenance work can be performed without disassembly of the bar. The additional side bar makes it very protective in case of falls off-road. NB can also be mounted on the R 1200 GS the original versions from 2004 to 2012.

12. Support oil cooler

Cod. 1212

Made of steel with high resistance powder coatings, has been designed and manufactured to be attached to our bar cylinders. It also serves as protection for the radiator. Complete with screws for mounting the bar and ready to accommodate the grommets and bushings of the oil cooler of your original R1200 GS.

13. Oil Cooler

Cod. 1228

Laminated aluminum oil cooler with high efficiency and high quality construction, lightweight and efficient engine cooling.

14. Tubes Oil Kit

Cod. 1219

Full housing for connecting pipes of the oil cooler on the right side of the bar crash bars of Code 1211 KIT R120G/S. Complete with original steel clamps, unions and seals over copper connection to the radiator.

The connection fitting lower left side is the original one.

15. Rack

Cod. 1215

Luggage rack made of steel with high resistance powder coatings. It mounts very easily, it employs the aluminum spacers and the original screws. And ‘provided with convenient handles for the passenger.

16. Windshield Fenouil

Cod.1227RE

Reproduces the look of the legendary R80 GS PD windshield and revised for our KITs. Made of ABS, RED and transparent finish. It gives good wind protection and comes complete with mounting brackets.

Diameter 185mm.

17. Stickers kit

Cod.2415

The racing stickers kit is included and is supplied separately.

18. Tank belt in grain leather

Cod.122509_02

Cod.122509_03

Tank belt in grain leather with nylon thread hand made in Italy. Allows you to cover the junction of the tank cover and mount our optional accessories. All the parts necessary for assembly are included.

IMPORTANT

The KIT R120 G/S is supplied complete with VIDEO ASSEMBLY INSTRUCTIONS, screws and accessories.

Some details have been deliberately kept from the original parts and must be removed from the original bike. We reserve the right to make changes and improvements for the efficiency of the Kit.
